Microsatellites: NORSAT-2

January 25, 2014

NORSAT-2 – Advanced Ship Tracking and VHF Data Exchange

NORSAT-2 was developed for Norway and launched on 14 July 2017. The satellite is currently operational.

The Norwegian Space Centre (NSC) and Space Norway leveraged the development of NORSAT-1 to enable this mission for advanced ship tracking and VHF data exchange. The NORSAT-2 satellite carries a next generation Automatic Identification System (AIS) receiver from Kongsberg Seatex, along with a VHF data exchange (VDE) payload that enables two-way communication at higher data rates than possible with AIS.

NORSAT-2 stowed

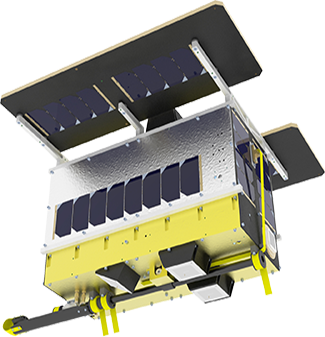

Figure 1: NORSAT-2 with VDE antenna stowed for launch.

One of the key challenges was to fit a directional VHF antenna on a small microsatellite, with NORSAT-2 being only 15 kilograms and roughly 20x30x40cm in dimensions (not including solar wings). SFL developed a deployable crossed Yagi antenna for the satellite that allows for compact stowage during launch and simple release after ejection from the launch vehicle (Figures 1 and 2). SFL also provided a high-speed S-band feeder uplink for the satellite, in addition to an S-band system for telemetry and command.

NORSAT-2 deployed

Figure 2: NORSAT-2 with AIS (fore) and VDE (aft) antennas deployed.

The VDE system (VDES) is needed to meet the growing demand for data exchange by providing additional capacity that is not available from existing AIS systems. While AIS provides for identification and position reporting/tracking of maritime vessels, VDES integrates AIS with Application Specific Messages (ASM), which are new channels with more capacity and better reliability of message delivery. Adding VDE satellite services effectively increases the range of ship to shore and ship to ship communication beyond direct line of sight.

NORSAT-2 is the first satellite operating in space with VHF Data Exchange capability (Figure 3).

Operations-Concept-for-NORSAT-2

Figure 3: Operations Concept for NORSAT-2.
