satellite platforms

CLICK HERE TO VIEW THE TABLE BELOW ON SMALL SCREENS WITH SCROLLING.

Typical Specifications – Customization Possible – Specifications Subject to Change

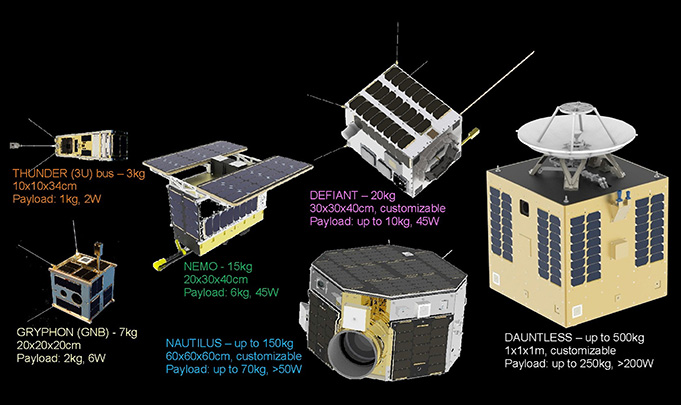

	THUNDER (3U)	GRYPHON (GNB)	NEMO	DEFIANT	NAUTILUS (NEMO-150)	DAUNTLESS
Spacecraft Mass	3.5 kg	7 kg	15 kg	20-30 kg	up to 150 kg	up to 500 kg
Spacecraft Volume	10 x 10 x 34cm	20 x 20 x 20 cm	20 x 30 x 40 cm	30 x 30 x 40 cm	60 x 60 x 60 cm	1 x 1 x 1 m
Peak Power 25ºC,BOL	2-7 W	7 – 9 W	50 – 100 W	50 – 100 W	up to 500W	up to 1kW
Payload Mass	1 kg	2 kg	6 kg	6-10 kg	up to 70 kg	up to 250 kg
Payload Volume	1,000 cm³	1,700 cm³	8,000 cm³	11,000 cm³	up to 108,000 cm³	up to 0.5 m³
Payload Power @ duty cycle	1-2 W @100%	3-4 W @100%, 6 W max.	45 W @40% min., 65 W max.	45 W @ 40% min, 65 W max	50W or higher	200 W or higher
ACS stability	~2° ⁽¹⁾	~2° ⁽²⁾~60″ ⁽³⁾	~2° ⁽²⁾~10-60″ ⁽³⁾	~2° ⁽²⁾~10-60″ ⁽³⁾	~2° ⁽²⁾~10-20″ ⁽³⁾	~2° ⁽²⁾~10-20″ ⁽³⁾
Downlink	32 kbps – 1 Mbps	32 kbsp – 2 Mbps	32 kbps – 2 Mbps	32 kbsp – 50 Mbps	32kbps – 50Mbps	32kbps – 200 Mbs
Propulsion	cold gas	cold gas	cold gas, resistojet, monopropulsion	cold gas, resistojet, monopropulsion	cold gas, resistojet, monopropulsion, Hall thruster	cold gas, resistojet, monopropulsion, Hall thruster
Navigation	GPS, 5-10m	GPS, 5-10m	GPS, 5-10m	GPS, 5-10m	GPS, 5-10m	GPS, 5-10m
Launch Interface	XPOD-Triple	XPOD GNB	XPOD Duo, XPOD Delta	Separation System	Separation System	Separation System
Mission Heritage	CanX-2, NTS, CanX-7	NTS, AISSat Constellation, BRITE Constellation, EV9, CanX-4, CanX-5	NEMO-AM, GHGSat-D, NORSAT-1, NORSAT-2, DMSat-1	Gray Jay	NEMO-HD	LEO 2
1. With magnetometer, sun sensor and one reaction wheel. 2. With magnetometer, fine sun sensor and three reaction wheels. 3. With star-tracker and three reaction wheels.
